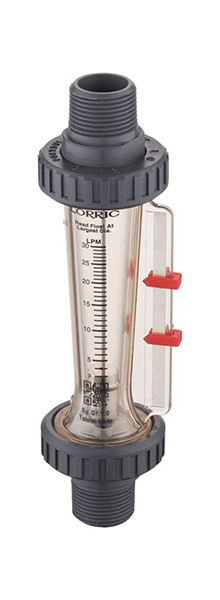

F201/201A Series – 192mm ½-¾” Pipe Size Patented Dual-Indicator Flow Meter
DESCRIPTION:
Easy to install, More stable flow field, Patented dual-indicator, Laser engraved scales
Inspected and proofed by SGS, RoHS compliant, the FP-AS510 has a measuring range that doubles that of other brands, which allows for the detection of any disappearance of the paddle which tends to cause zero-flow problems, on top of large indicator lights and a large screen that allows for more convenient on-site supervision.
- New body design: Decreases the vibration when working which stabilizes flow distribution.
- New indicator design: Easily adjustable and positionable.
- Thickened threads for caps: Caps are easy to be locked even under bad concentricity.
- Models with and without guide rods are able to share the same adaptors.
- Applicable Fluid: Liquid (F201) , Gas (F201A)
- Adaptor Size: 1/2″, 3/4″
- Adaptor Material: Welding Type, Male Thread, Female Thread, Butt-fusion Adaptor *** BSPT is standard thread type. NPT is available for custom order
- Flow direction: From the bottom up
- Patented dual-indicator design for easy and clear flow range management.
- Laser engraved degree scales provide better readability and longer life.
- Available in customizable units and specific gravity (SG).
- Each batch of flow meters will be calibrated before delivery for our best precision guarantee.
- Hastelloy float is available for specific high PH liquid usage.
- Perpendicular joint is available for space saving installation.
- Operating Conditions
- Full Scale Accuracy: ±5%
- Working pressure: 5.0kg/cm²
